Panel__switcher not displaying #4561

franreyn · 2022-09-06T23:17:14Z

franreyn
Sep 6, 2022

I cannot get the .panel__switcher to display any buttons.

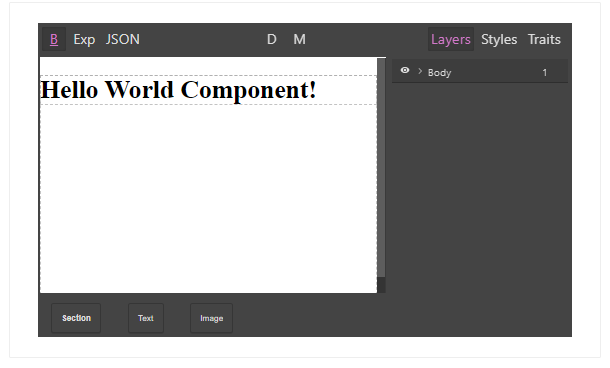

This is what is expected:

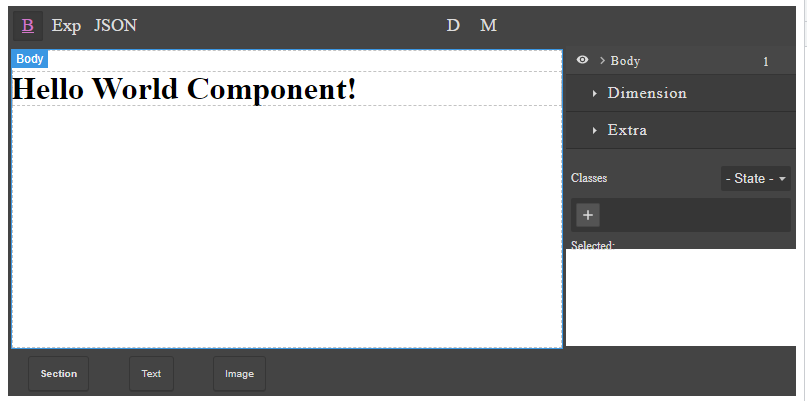

But this is what I get:

Here is the code:

<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <link rel="stylesheet" href="./grapesjs/grapes.min.css">
  <script src="./grapesjs/grapes.min.js"></script>
  <title>Course Builder</title>
</head>
<body>
  <div class="panel__top">
    <div class="panel__basic-actions"></div>
    <div class="panel__devices"></div>
    <div class="panel__switcher"></div>
  </div>
  <div class="editor-row">
    <div class="editor-canvas">
      <div id="gjs">
        <h1>Hello World Component!</h1>
      </div>
    </div>
    <div class="panel__right">
      <div class="layers-container"></div>
      <div class="styles-container"></div>
    </div>
  </div>
  <div id="blocks"></div>


  <style>
    /* Let's highlight canvas boundaries */
    #gjs {
      border: 3px solid #444;
    }

    /* Reset some default styling */
    .gjs-cv-canvas {
      top: 0;
      width: 100%;
      height: 100%;
    }

    .gjs-block {
      width: auto;
      height: auto;
      min-height: auto;
    }

    .panel__top {
      padding: 0;
      width: 100%;
      display: flex;
      position: initial;
      justify-content: center;
      justify-content: space-between;
    }
    .panel__basic-actions {
      position: initial;
    }

    .editor-row {
      display: flex;
      justify-content: flex-start;
      align-items: stretch;
      flex-wrap: nowrap;
      height: 300px;
    }

    .editor-canvas {
      flex-grow: 1;
    }

    .panel__right {
      flex-basis: 230px;
      position: relative;
      overflow-y: auto;
    }

    .panel__switcher {
      position: initial;
    }

    .panel__devices {
      position: initial;
    }
  </style>

  <script type="text/javascript">

    //=== Init ===//
    const editor = grapesjs.init({
      container: '#gjs',
      fromElement: true,
      height: '300px',
      width: 'auto',
      storageManager: false,
      panels: { defaults: [] },
      layerManager: {
        appendTo: '.layers-container'
      },
      // We define a default panel as a sidebar to contain layers
      panels: {
        defaults: [{
            id: 'layers',
            el: '.panel__right',
            // Make the panel resizable
            resizable: {
              maxDim: 350,
              minDim: 200,
              tc: 0, // Top handler
              cl: 1, // Left handler
              cr: 0, // Right handler
              bc: 0, // Bottom handler
              // Being a flex child we need to change `flex-basis` property
              // instead of the `width` (default)
              keyWidth: 'flex-basis',
            },
          },
          {
            id: 'panel-switcher',
            el: '.panel__switcher',
            buttons: [{
              id: 'show-layers',
              active: true,
              label: 'Layers',
              command: 'show-layers',
              // Once activated disable the possibility to turn it off
              togglable: false,
              }, {
              id: 'show-style',
              active: true,
              label: 'Styles',
              command: 'show-styles',
              togglable: false,
            }],
          }]
      },
      // The Selector Manager allows to assign classes and
      // different states (eg. :hover) on components.
      // Generally, it's used in conjunction with Style Manager
      // but it's not mandatory
      selectorManager: {
        appendTo: '.styles-container'
      },
      styleManager: {
        appendTo: '.styles-container',
        sectors: [{
            name: 'Dimension',
            open: false,
            // Use built-in properties
            buildProps: ['width', 'min-height', 'padding'],
            // Use `properties` to define/override single property
            properties: [
              {
                // Type of the input,
                // options: integer | radio | select | color | slider | file | composite | stack
                type: 'integer',
                name: 'The width', // Label for the property
                property: 'width', // CSS property (if buildProps contains it will be extended)
                units: ['px', '%'], // Units, available only for 'integer' types
                defaults: 'auto', // Default value
                min: 0, // Min value, available only for 'integer' types
              }
            ]
          },{
            name: 'Extra',
            open: false,
            buildProps: ['background-color', 'box-shadow', 'custom-prop'],
            properties: [
              {
                id: 'custom-prop',
                name: 'Custom Label',
                property: 'font-size',
                type: 'select',
                defaults: '32px',
                // List of options, available only for 'select' and 'radio'  types
                options: [
                  { value: '12px', name: 'Tiny' },
                  { value: '18px', name: 'Medium' },
                  { value: '32px', name: 'Big' },
                ],
            }
          ]
        }]
      },
      // Storage manager
      storageManager: {
        id: 'gjs-',             // Prefix identifier that will be used inside storing and loading
        type: 'local',          // Type of the storage
        autosave: true,         // Store data automatically
        autoload: true,         // Autoload stored data on init
        stepsBeforeSave: 1,     // If autosave enabled, indicates how many changes are necessary before store method is triggered
        storeComponents: true,  // Enable/Disable storing of components in JSON format
        storeStyles: true,      // Enable/Disable storing of rules in JSON format
        storeHtml: true,        // Enable/Disable storing of components as HTML string
        storeCss: true,         // Enable/Disable storing of rules as CSS string
      },
      // Block manager
      blockManager: {
        appendTo: '#blocks',
        blocks: [
          {
            id: 'section', // id is mandatory
            label: '<b>Section</b>', // You can use HTML/SVG inside labels
            attributes: { class:'gjs-block-section' },
            content: `<section>
              <h1>This is a simple title</h1>
              <div>This is just a Lorem text: Lorem ipsum dolor sit amet</div>
            </section>`,
          }, {
            id: 'text',
            label: 'Text',
            content: '<div data-gjs-type="text">Insert your text here</div>',
          }, {
            id: 'image',
            label: 'Image',
            // Select the component once it's dropped
            select: true,
            // You can pass components as a JSON instead of a simple HTML string,
            // in this case we also use a defined component type `image`
            content: { type: 'image' },
            // This triggers `active` event on dropped components and the `image`
            // reacts by opening the AssetManager
            activate: true,
          }
        ]
      },

        // Device manager
        deviceManager: {
          devices: [{
              name: 'Desktop',
              width: '', // default size
            }, {
              name: 'Mobile',
              width: '320px', // this value will be used on canvas width
              widthMedia: '480px', // this value will be used in CSS @media
          }]
        },
        // ...
        panels: {
          defaults: [
            // ...
            {
              id: 'panel-devices',
              el: '.panel__devices',
              buttons: [{
                  id: 'device-desktop',
                  label: 'D',
                  command: 'set-device-desktop',
                  active: true,
                  togglable: false,
                }, {
                  id: 'device-mobile',
                  label: 'M',
                  command: 'set-device-mobile',
                  togglable: false,
              }],
            }
          ]
        },

    });
    //=== end init ===//

    //=== Top Panel =====//
    editor.Panels.addPanel({
      id: 'panel-top',
      el: '.panel__top',
    });
    editor.Panels.addPanel({
      id: 'basic-actions',
      el: '.panel__basic-actions',
      buttons: [
        {
          id: 'visibility',
          active: true, // active by default
          className: 'btn-toggle-borders',
          label: '<b>Course Builder</b>',
          command: 'sw-visibility', // Built-in command
        }, {
          id: 'export',
          className: 'btn-open-export',
          label: 'Exp',
          command: 'export-template',
          context: 'export-template', // For grouping context of buttons from the same panel
        }, {
          id: 'show-json',
          className: 'btn-show-json',
          label: 'JSON',
          context: 'show-json',
          command(editor) {
            editor.Modal.setTitle('Components JSON')
              .setContent(`<textarea style="width:100%; height: 250px;">
                ${JSON.stringify(editor.getComponents())}
              </textarea>`)
              .open();
          },
        }
      ],
    });
    //=== end top panel ===//

    //=== Define commands ===//
    editor.Commands.add('show-layers', {
      getRowEl(editor) { return editor.getContainer().closest('.editor-row'); },
      getLayersEl(row) { return row.querySelector('.layers-container') },

      run(editor, sender) {
        const lmEl = this.getLayersEl(this.getRowEl(editor));
        lmEl.style.display = '';
      },
      stop(editor, sender) {
        const lmEl = this.getLayersEl(this.getRowEl(editor));
        lmEl.style.display = 'none';
      },
    });
    editor.Commands.add('show-styles', {
      getRowEl(editor) { return editor.getContainer().closest('.editor-row'); },
      getStyleEl(row) { return row.querySelector('.styles-container') },

      run(editor, sender) {
        const smEl = this.getStyleEl(this.getRowEl(editor));
        smEl.style.display = '';
      },
      stop(editor, sender) {
        const smEl = this.getStyleEl(this.getRowEl(editor));
        smEl.style.display = 'none';
      },
    });
    // End Define commands ===//

    //=== Device manager commands ===//
    editor.Commands.add('set-device-desktop', {
      run: editor => editor.setDevice('Desktop')
    });
    editor.Commands.add('set-device-mobile', {
      run: editor => editor.setDevice('Mobile')
    });
  </script>
</body>
</html>

Answered by franreyn

Sep 7, 2022

I found the issue. I had two panels: { defaults: [{}]}, once I removed the bottom duplicate it worked.

View full answer

franreyn · 2022-09-07T15:26:22Z

franreyn
Sep 7, 2022
Author

I found the issue. I had two panels: { defaults: [{}]}, once I removed the bottom duplicate it worked.
