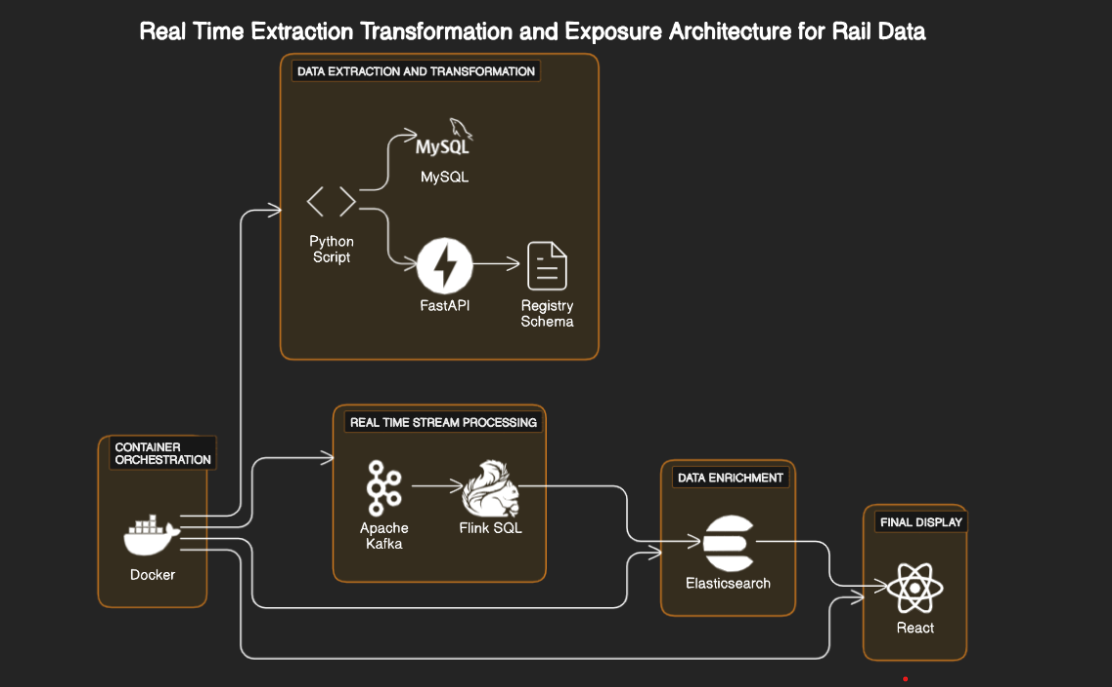

Startup Guide for Real-Time Data Architecture for Rail Data

This guide provides the necessary steps to set up and run the real-time data architecture for rail data.

Clone the Project

1. Open a terminal.
2. Run the following command to clone the repository:

   git clone https://github.com/Stefen-Taime/Real-Time-Extraction-Transformation-and-Exposure-Architecture-for-Rail-Data.git


3. Navigate to the cloned project:

   cd Real-Time-Extraction-Transformation-and-Exposure-Architecture-for-Rail-Data


Launch Services with Docker Compose

In the project's root directory, launch the services using Docker Compose:

docker-compose up --build -d

Service Configuration

After starting the services, configure and start the different project components in four separate terminals.

Terminal 1: Flink SQL Client

1. Obtain the Docker container ID running Apache Flink with docker ps.
2. Execute the Flink SQL client:

   docker exec -it <container_id> /opt/flink/bin/sql-client.sh


3. Execute the SQL queries located in jobs/job.sql.

Terminal 2: API Microservice 1

1. Navigate to the first API microservice:

   cd apiMicroservice1


2. Launch the microservice:

   python main.py


Terminal 3: API Microservice 2

1. Navigate to the second API microservice:

   cd apiMicroservice2


2. Launch the microservice:

   python app.py


Terminal 4: Next.js Application

1. Navigate to the metro-status service:

   cd metro-status


2. Clean the project and launch the application in development mode:

   npm run clean
   npm run dev


Accessing the Services

• Flink Dashboard: Typically at http://localhost:8085.
• API Microservices: http://localhost:<port>.
• Next.js Application: Typically at http://localhost:3000.
